Laser equipment
Fiber laser technology for sheet, tube and welding.
High-speed fiber laser cutting machines for sheet and tube, handheld laser welders and laser markers — fast, accurate and energy-efficient.
Fiber laser technology for sheet, tube and welding.
High-speed fiber laser cutting machines for sheet and tube, handheld laser welders and laser markers — fast, accurate and energy-efficient.
Specifications are typical ranges — every machine is configured to your application.

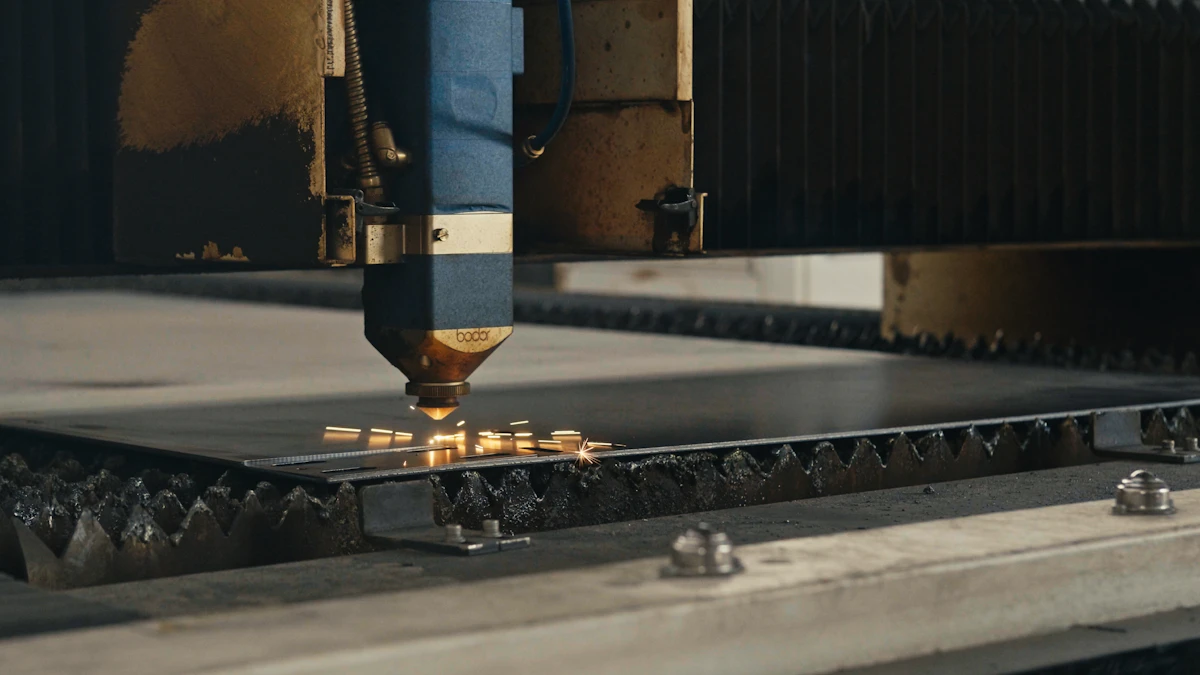

Enclosed fiber laser with exchange table for fast, precise cutting of steel, stainless, aluminium, copper and brass.
| Laser power | 3–30 kW |
| Working area | 3015 / 4020 / 6025 |
| Positioning accuracy | ± 0.03 mm |
| Max. speed | Up to 160 m/min |
| Table | Automatic exchange |
| Cutting head | Auto-focus |
Laser tube cutting for round, square, rectangular and open profiles with automatic loading.
| Laser power | 2–12 kW |
| Tube diameter | Ø 20–350 mm |
| Tube length | 6,000–12,000 mm |
| Chucks | Pneumatic, 3- or 4-chuck |
| Accuracy | ± 0.05 mm |
| Loading | Automatic bundle loader |
3-in-1 handheld fiber laser for welding, cutting and surface cleaning — fast to learn, minimal distortion.
| Laser power | 1.5–3 kW |
| Functions | Weld / clean / cut |
| Welding thickness | Up to 6 mm |
| Wire feeder | Integrated |
| Cooling | Water chiller |
| Cable length | 10–15 m |

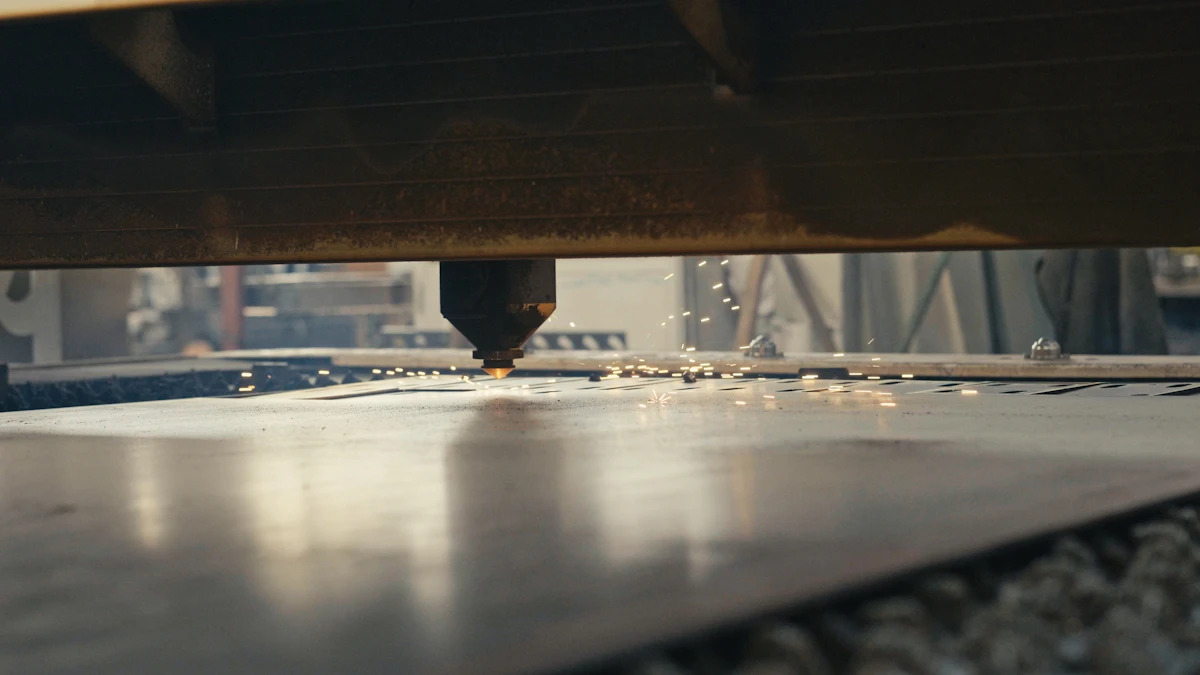

Permanent marking of logos, serial numbers, QR codes and text on metal and plastic parts.
| Laser power | 20–100 W |
| Marking area | 110×110 – 300×300 mm |
| Marking speed | Up to 7,000 mm/s |
| Source | Fiber / MOPA |
| Rotary axis | Optional |
| Software | EzCad |
Every machine is supplied with CE declaration, English manual, installation and operator training.
Message George with your material, sizes and volumes.
