Robotics
Automate welding, handling and palletising.
From turn-key welding cells to collaborative robots for small batches, we supply robot systems ready for production — with programming support and on-site commissioning.
Automate welding, handling and palletising.
From turn-key welding cells to collaborative robots for small batches, we supply robot systems ready for production — with programming support and on-site commissioning.
Specifications are typical ranges — every machine is configured to your application.

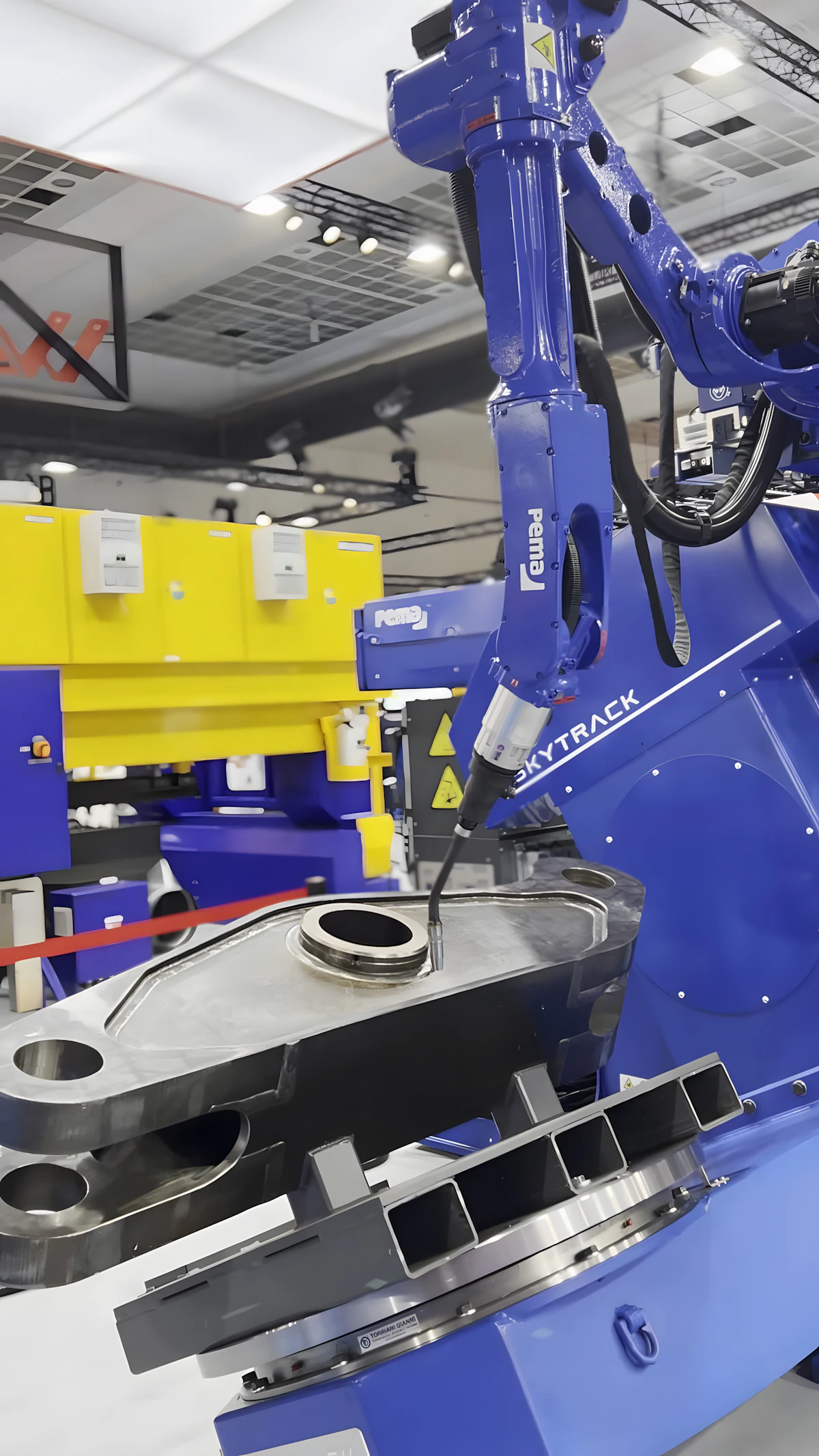

Turn-key 6-axis MIG/MAG welding cell with positioner, safety enclosure and fume extraction. Ideal for repeatable batch welding of frames, brackets and assemblies.
| Axes | 6 + 1–2 axis positioner |
| Payload | 6–12 kg |
| Reach | 1,400–2,000 mm |
| Repeatability | ± 0.05 mm |
| Process | MIG/MAG, TIG optional |
| Power source | 350–500 A pulse |
Easy-to-teach collaborative robot on a mobile welding table — no fencing required, perfect for small batches and job shops.
| Axes | 6 |
| Payload | 10–20 kg |
| Reach | 1,300–1,700 mm |
| Repeatability | ± 0.03 mm |
| Programming | Hand-guided teaching + tablet |
| Setup | Mobile table with fixtures |

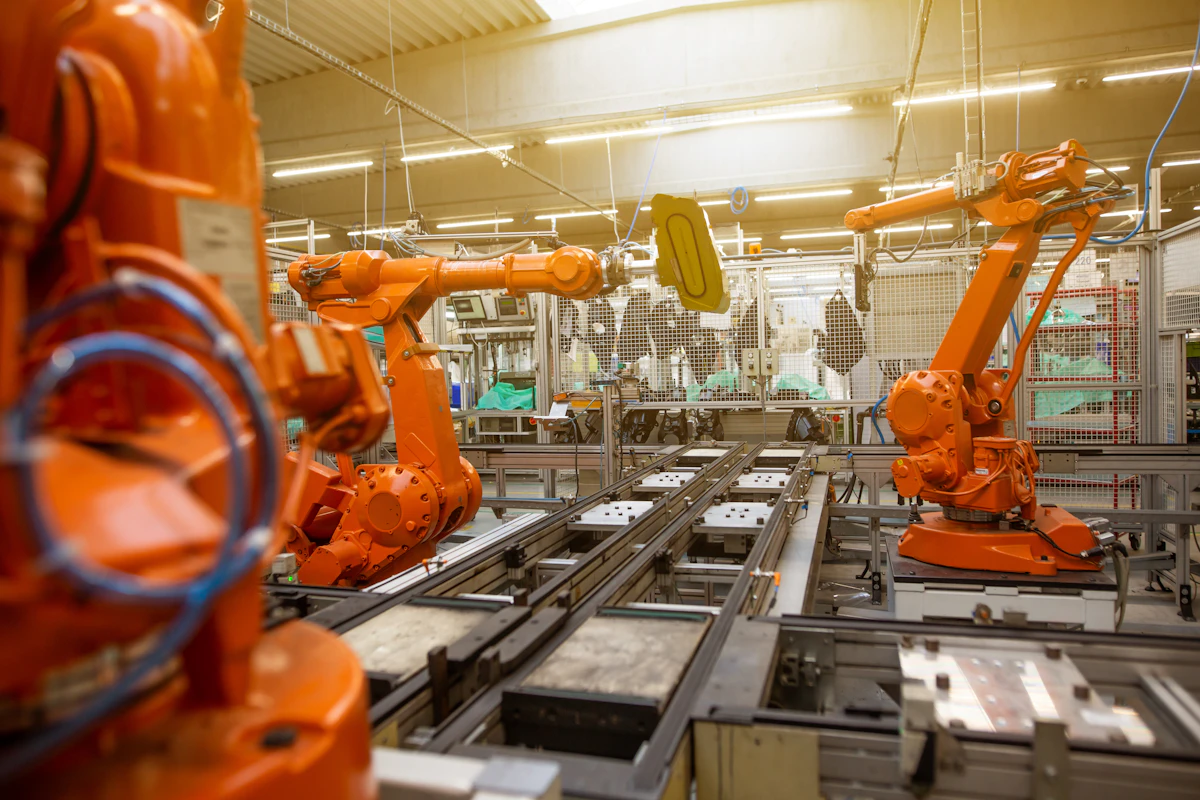

Industrial robots for machine tending, loading laser and saw systems, and palletising finished parts.
| Axes | 4–6 |
| Payload | 20–210 kg |
| Reach | 1,700–3,100 mm |
| Repeatability | ± 0.05 mm |
| Grippers | Vacuum / mechanical / magnetic |
| Integration | Laser, saw, press brake, CNC |
Fiber laser welding head on a 6-axis robot for fast, low-distortion welds on stainless steel, aluminium and thin sheet.
| Laser power | 1.5–6 kW |
| Payload | 12–20 kg |
| Welding speed | Up to 6 m/min |
| Wobble head | Yes |
| Materials | Steel, stainless, aluminium |
| Thickness | 0.5–8 mm |
Every machine is supplied with CE declaration, English manual, installation and operator training.
Message George with your material, sizes and volumes.
