Sanding machines
Deburring and finishing for perfect edges.
Wide-belt deburring, edge-rounding, grinding and polishing machines that remove slag and burrs from cut parts and prepare surfaces for coating.
Deburring and finishing for perfect edges.
Wide-belt deburring, edge-rounding, grinding and polishing machines that remove slag and burrs from cut parts and prepare surfaces for coating.
Specifications are typical ranges — every machine is configured to your application.

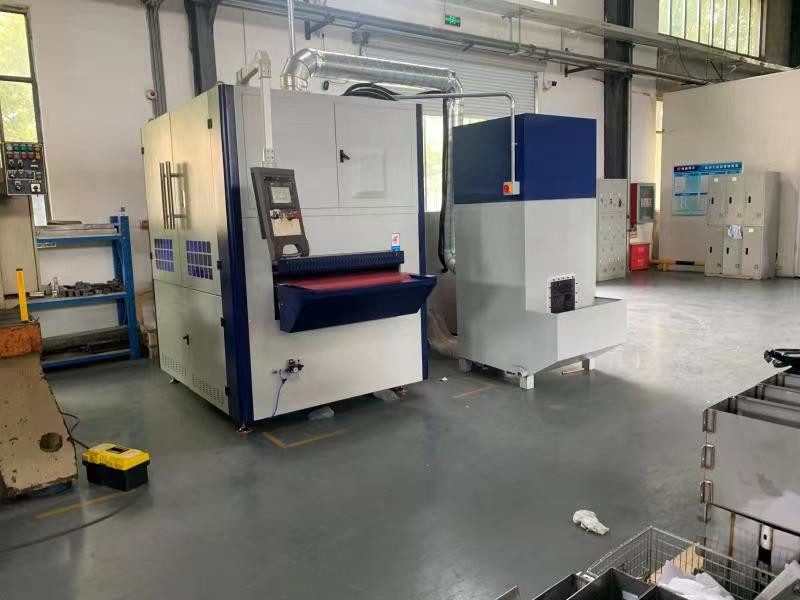

Removes slag and burrs from laser, plasma and punched parts in a single pass, with integrated dust extraction.
| Working width | 600–1,600 mm |
| Thickness | 0.5–100 mm |
| Units | Belt + brush stations |
| Feed speed | 0.5–8 m/min |
| Workpiece hold | Vacuum / magnetic belt |
| Process | Wet or dry |

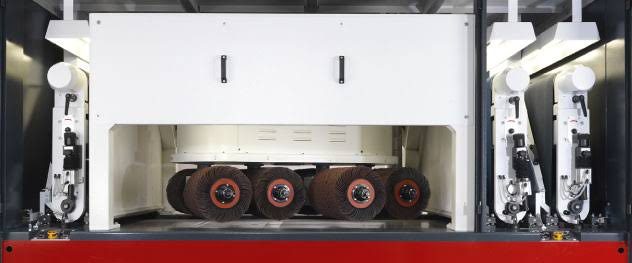

Rotating brush units create a consistent edge radius on inner and outer contours — ideal before powder coating and painting.
| Working width | 1,000–1,600 mm |
| Brush units | 2–4 rotating heads |
| Edge radius | Up to 2 mm |
| Feed speed | 0.5–6 m/min |
| Workpiece hold | Vacuum / magnetic |
| Min. part size | 50 × 50 mm |
Robust belt grinders for manual finishing, weld seam grinding and small parts.
| Belt size | 75 × 2,000 mm |
| Motor | 2.2–4 kW |
| Belt speed | Variable |
| Contact wheel | Ø 200 mm |
| Work rest | Adjustable |
| Dust extraction | Connection port |
Centerless grinding and polishing for round tube and bar — from coarse grinding to mirror finish.
| Diameter | Ø 8–150 mm |
| Heads | 2–8 abrasive heads |
| Finish | Satin to mirror |
| Feed | Automatic rollers |
| Motor per head | 2.2–5.5 kW |
| Process | Wet or dry |
Every machine is supplied with CE declaration, English manual, installation and operator training.
Message George with your material, sizes and volumes.
