Sawing machines
Precise, efficient cutting of bar, tube and profiles.
Band saws and circular cold saws for every workshop — from semi-automatic saws for structural steel to fully automatic production saws with servo bar feed.
Precise, efficient cutting of bar, tube and profiles.
Band saws and circular cold saws for every workshop — from semi-automatic saws for structural steel to fully automatic production saws with servo bar feed.
Specifications are typical ranges — every machine is configured to your application.

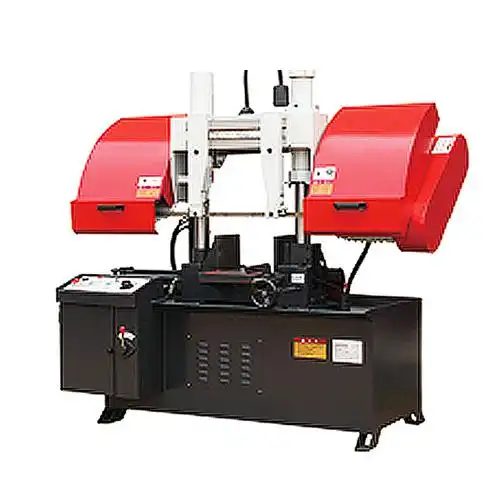

Fully automatic double-column band saw with servo bar feed for high-volume cutting of solid bar, tube and profiles.
| Capacity (round) | Ø 260–500 mm |
| Capacity (flat) | 260×260 – 500×500 mm |
| Feed | Servo, multi-stroke |
| Blade speed | 20–100 m/min |
| Main motor | 3–7.5 kW |
| Control | Touchscreen NC |
Horizontal band saw for structural steel and profiles, with hydraulic down-feed and quick angle setting.
| Capacity (round) | Ø 300–400 mm |
| Mitre | -60° to +60° |
| Down-feed | Hydraulic, adjustable |
| Clamping | Hydraulic vice |
| Main motor | 2.2–4 kW |
| Blade size | 34 × 1.1 mm |

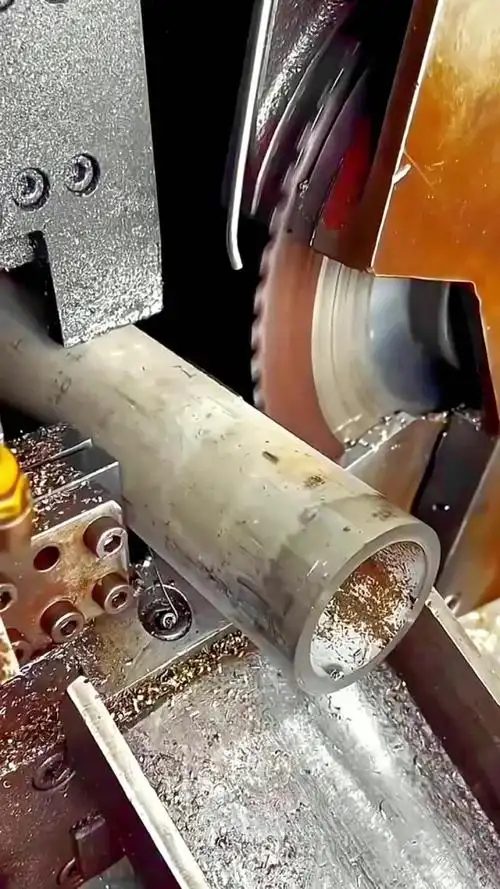

High-speed carbide circular saw for precise, burr-free cuts of tube and bar in production lines.
| Capacity | Ø 20–120 mm |
| Blade | TCT / HSS, Ø 250–460 mm |
| Accuracy | ± 0.1 mm |
| Cycle time | From 4 s per cut |
| Feed | Servo, automatic |
| Loading | Bundle loader optional |

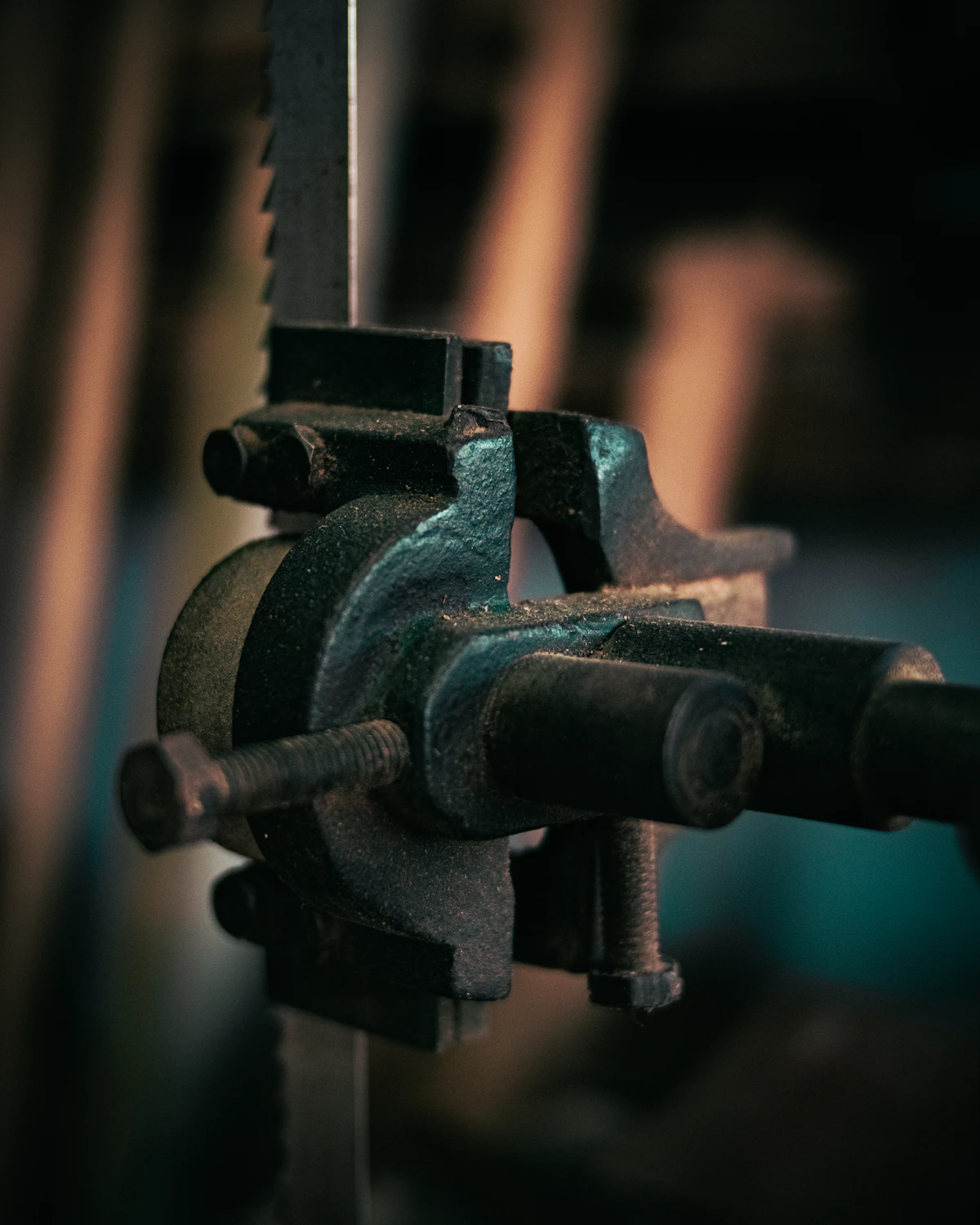

Vertical band saw for plate, contour cutting and large workpieces, with tilting table and variable speed.
| Throat depth | 400–1,000 mm |
| Cutting height | 250–500 mm |
| Table tilt | Up to 45° |
| Blade speed | Variable 20–1,500 m/min |
| Main motor | 1.5–4 kW |
| Blade welder | Built-in |
Every machine is supplied with CE declaration, English manual, installation and operator training.
Message George with your material, sizes and volumes.
